Example: Axiad Conductor

This page walks through one complete universal REST setup, using Axiad Conductor (UCMS v3) as the system being connected. It's a useful reference even if you're connecting something else — the shape of the flow is the same, and the notes on nesting and first-sync behavior apply to any API that returns records inside records.

For the concepts behind this connector, start with Universal REST connector.

What Conductor contributes

Conductor endpoint	Becomes in Mesh
GET /api/v3/users	Users, groups, and group membership
GET /api/v3/devices	Credentials

The credentials are the point. Conductor returns them nested three levels deep — each user holds devices, and each device holds credentials — and every credential carries its X.509 certificate. Mesh reads that certificate to record the key algorithm, key size, and signature hash, which is what powers crypto posture and post-quantum readiness reporting.

Before you start

You need:

• The base URL for your Conductor tenant, in the form https://ucms-<tenant>.demo.axiadids.net/secuera.
• A bearer token for that tenant, with read access to /api/v3/users and /api/v3/devices.
• The UCMS v3 OpenAPI document.

Set up the connector

From Connectors, choose Set up a connector, then Universal REST connector — the 6-step wizard for a REST API that has no dedicated connector.

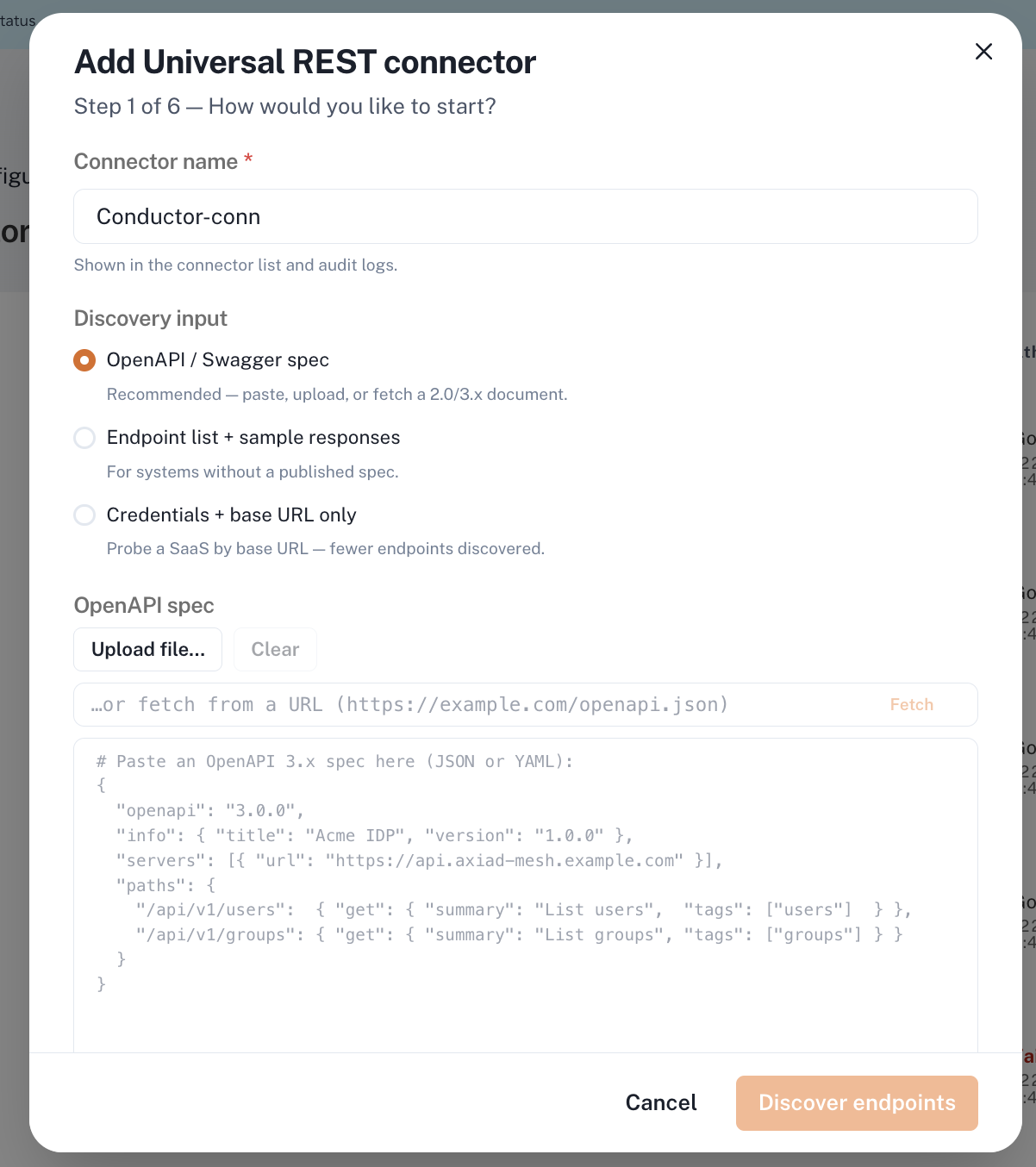

Step 1 — How would you like to start?

Field	Select
Connector name	Conductor-conn
Discovery input	OpenAPI / Swagger spec (not Endpoint list or Credentials + base URL only)

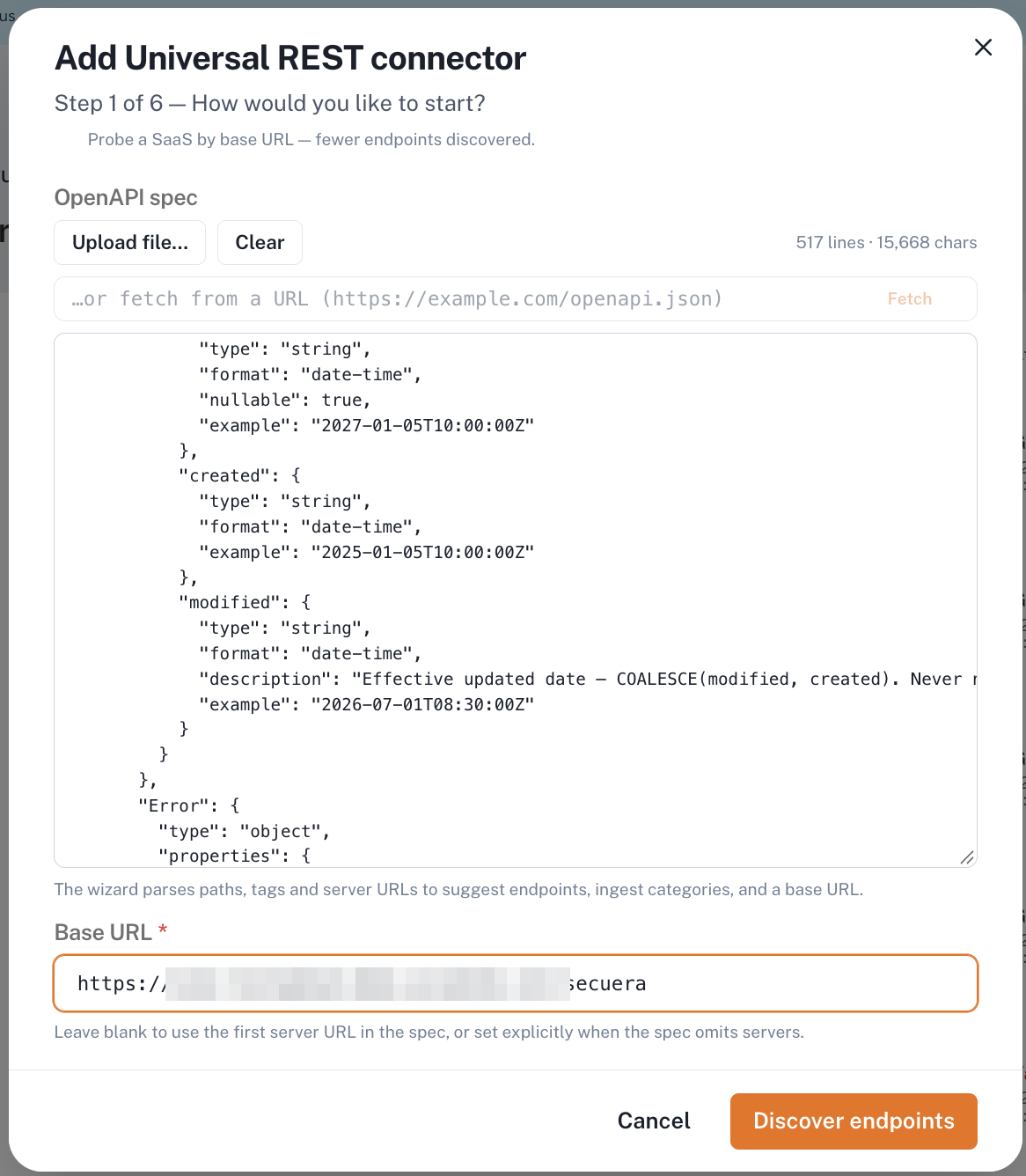

OpenAPI spec	Upload or paste the UCMS v3 document
Base URL	https://ucms-<tenant>.demo.axiadids.net/secuera

Set Base URL explicitly. The UCMS document doesn't declare a usable server entry, so leaving it blank produces a configuration that fails validation later.

Choose Discover endpoints.

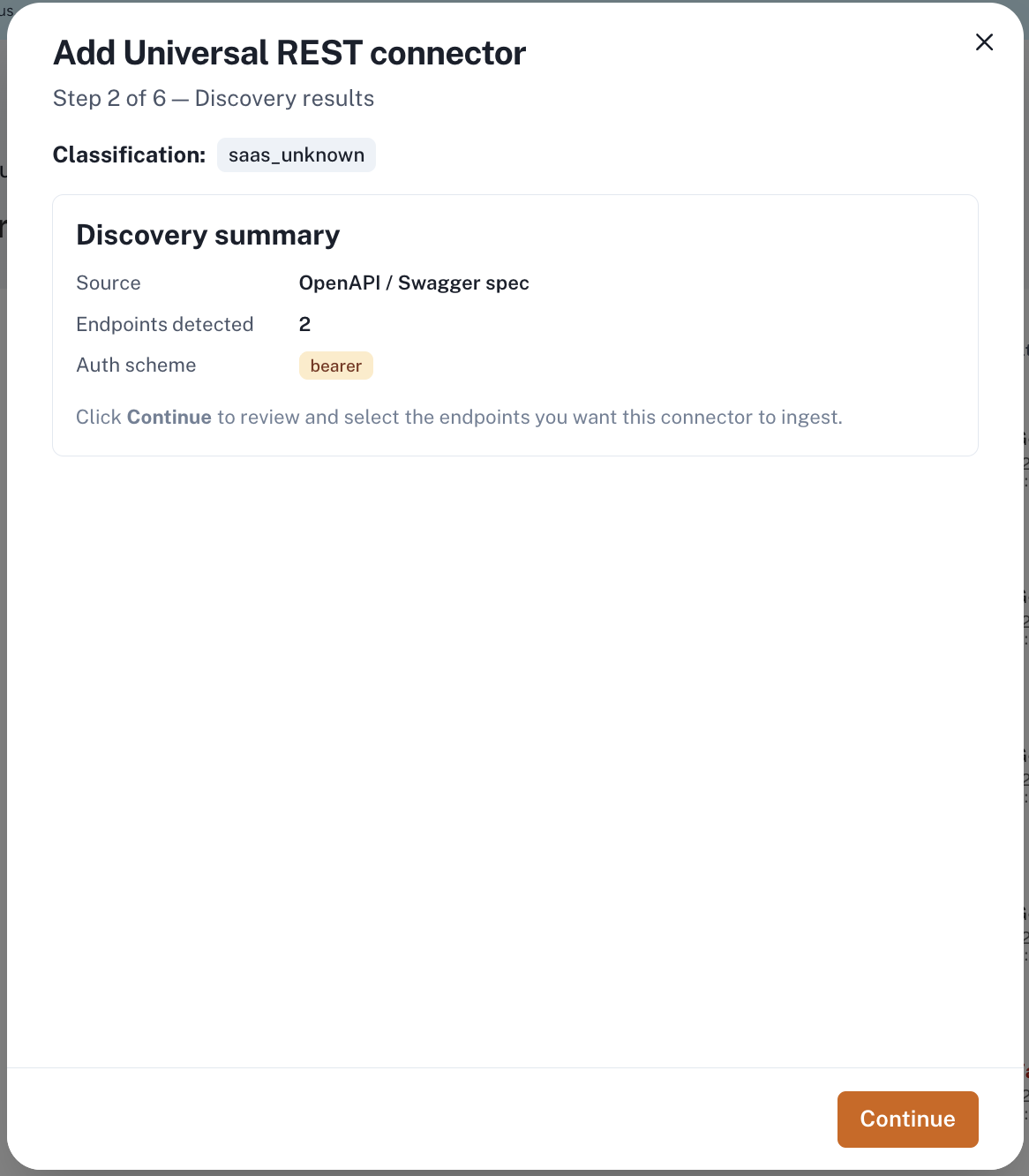

Step 2 — Discovery results

Nothing to select here. Confirm what Mesh found before continuing:

Field	Expected
Source	OpenAPI / Swagger spec
Endpoints detected	2
Auth scheme	bearer

If it reports fewer than two endpoints, the wrong document was supplied — go back rather than continuing.

Choose Continue.

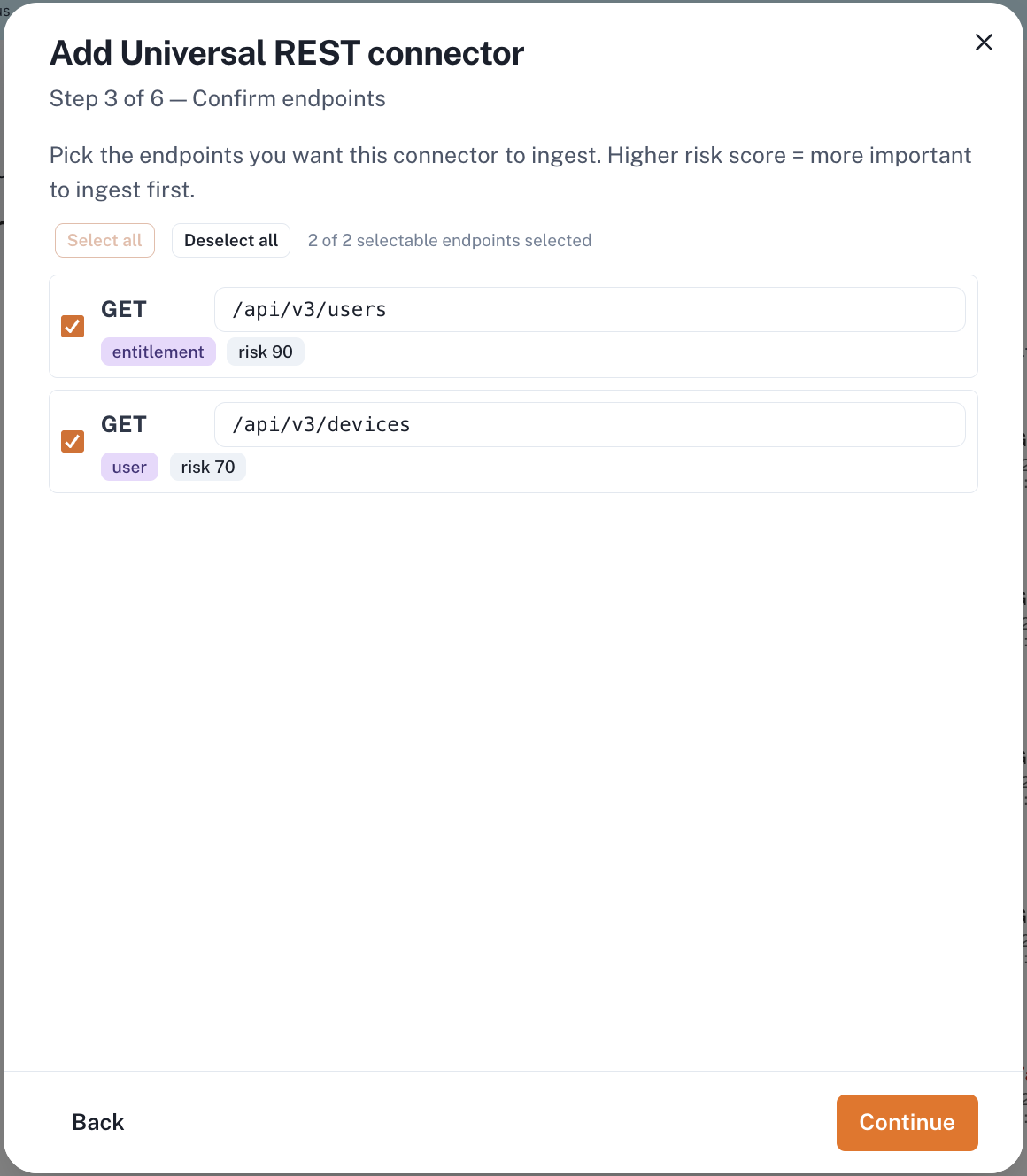

Step 3 — Confirm endpoints

Select both endpoints:

• GET /api/v3/users
• GET /api/v3/devices

Selecting only /api/v3/users leaves you with users and groups but no credentials. Mesh shows a suggested category and a risk score against each endpoint; neither needs changing.

Choose Continue.

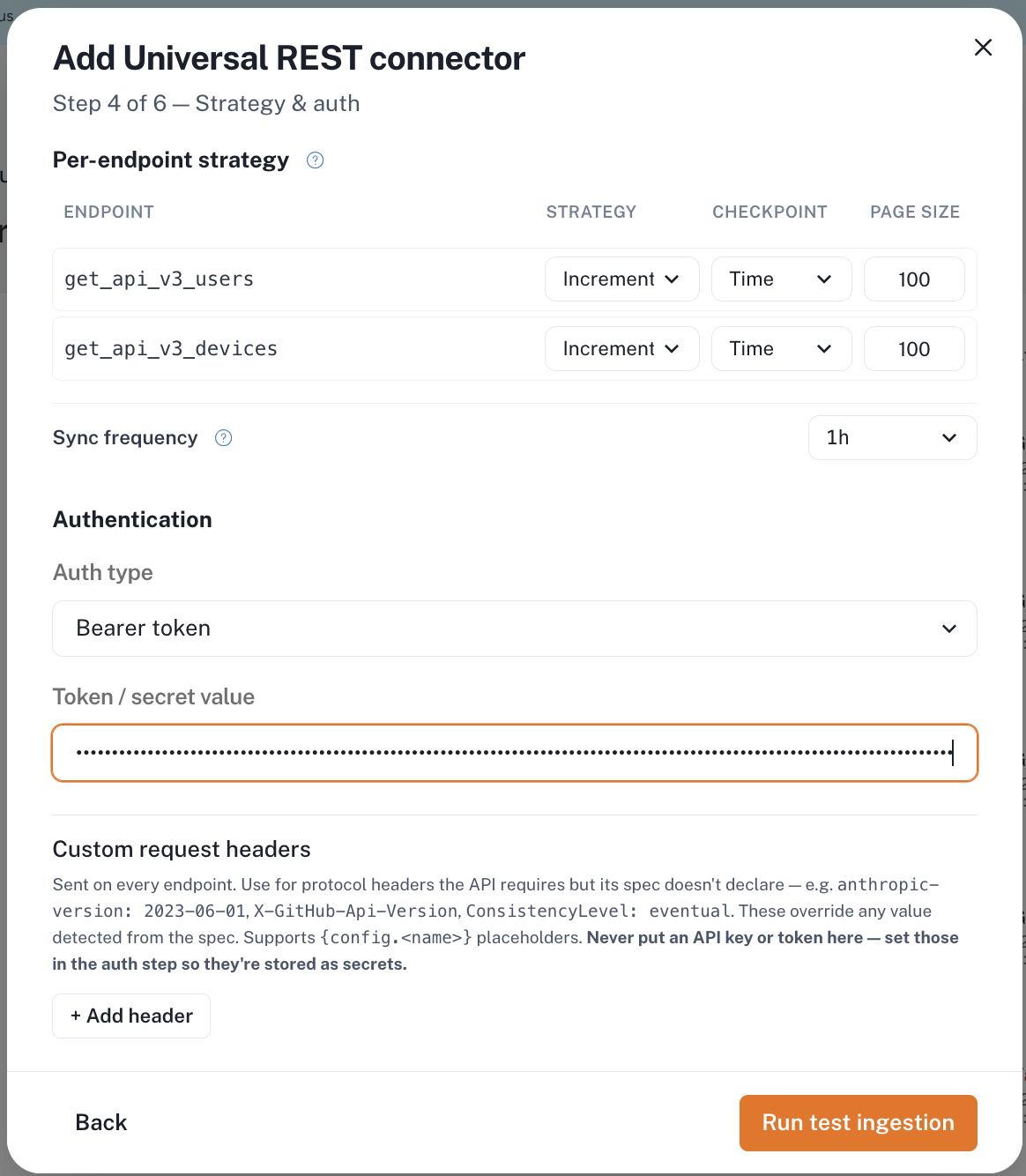

Step 4 — Strategy and authentication

Set both endpoints identically:

Endpoint	Strategy	Checkpoint	Page size
get_api_v3_users	Increment	Time	100
get_api_v3_devices	Increment	Time	100

Then:

Field	Select
Sync frequency	1h
Auth type	Bearer token
Token / secret value	Your Conductor bearer token
Custom request headers	None — Conductor needs no extra protocol headers

important

Enter the token here even if you plan to test later. Mesh uses it to read one real page from each endpoint while it builds the configuration, and that's the only way it can see that credentials are nested inside devices inside users. An API specification doesn't include example responses, so without the token Mesh builds a flat configuration, and the connector collects a small number of records with no error to explain why.

Choose Run test ingestion.

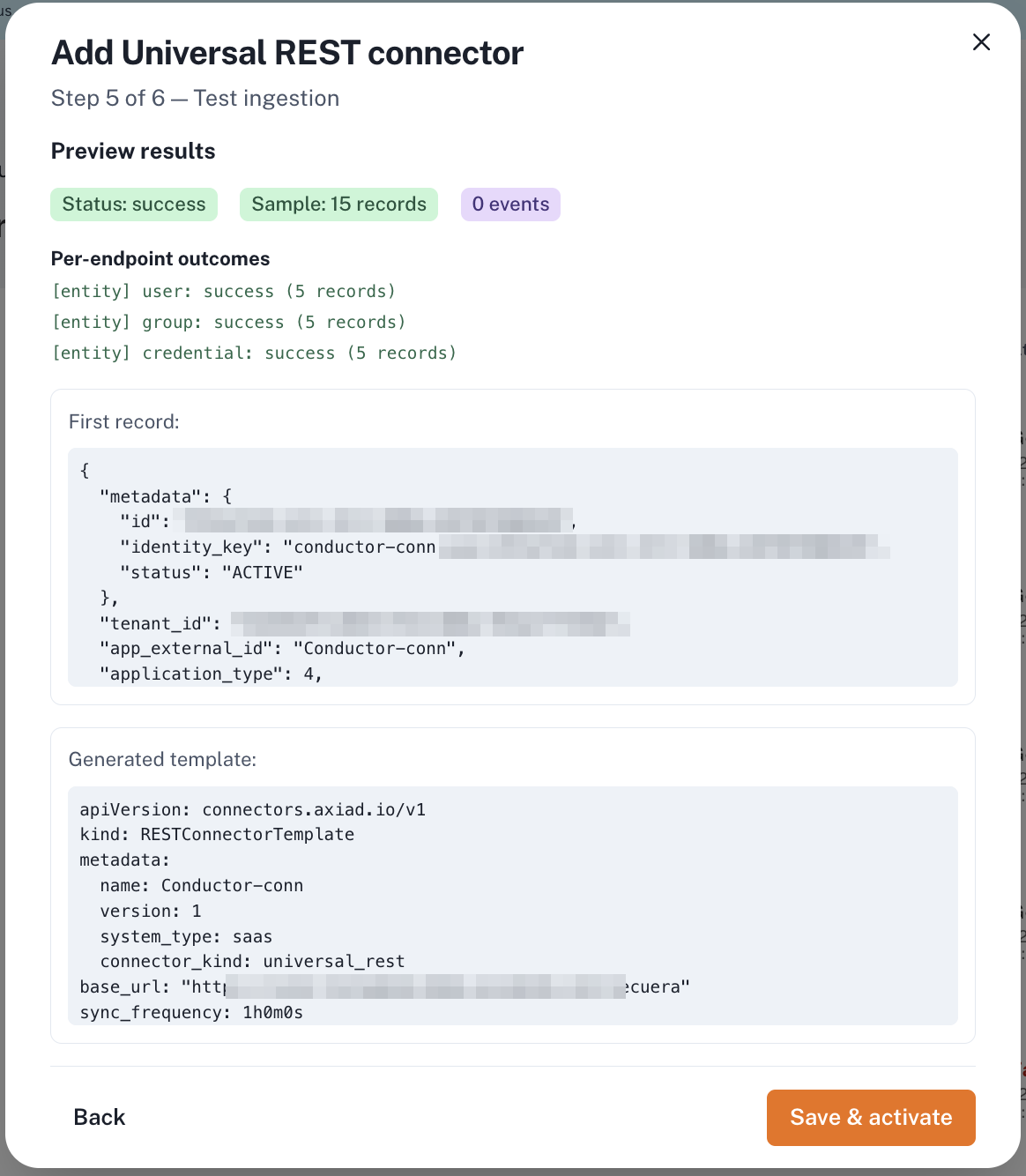

Step 5 — Test ingestion

A healthy result reports Status: success with all three categories present:

• [entity] user: success
• [entity] group: success
• [entity] credential: success

If credential is missing, stop and rebuild the connector — the configuration was generated without reading a live page, and the connector will not collect credentials once activated.

The record counts shown here are a capped preview, not a forecast. Five per category is normal and says nothing about how much data your first sync will collect.

Review the generated configuration below the results, then choose Save & activate.

Step 6 — Save and activate

The connector appears on the Connectors page and runs on the schedule set in step 4.

What to expect on the first sync

Credentials may not appear on the first run. This is expected on larger tenants and needs no action.

Mesh collects a bounded number of records per run so a large source can't exhaust memory. If your Conductor tenant has many users, the user endpoint uses that budget on its own, and the device endpoint runs on a later sync. Each run resumes exactly where the previous one stopped.

On a tenant with roughly 58,000 users, credentials appeared after about 12 hours of scheduled syncs. Nothing was required in between.

You can watch progress on the connector's health panel: user counts climb first, and credentials appear once the user endpoint completes.

If you need credentials sooner on a large tenant, contact Axiad Customer Success — the endpoint order can be adjusted so devices are collected first.

Troubleshooting

What you see	What it means
Users and groups collected, but no credentials, and the sync keeps completing	Normal on a large tenant — the device endpoint runs after the user endpoint finishes. Check again after several sync cycles.
Test ingestion succeeds but shows no credential category	The configuration was built without a token, so the nesting wasn't detected. Rebuild the connector and enter the token at step 4.
Sync reports success but counts stop changing	Confirm the token hasn't expired — Mesh reports an authentication failure separately, but an expired token narrows what Conductor returns.
Group membership all appears under one group	Conductor assigns directory identifiers to groups synced from Active Directory, but not to locally defined groups. Contact Axiad Customer Success.
